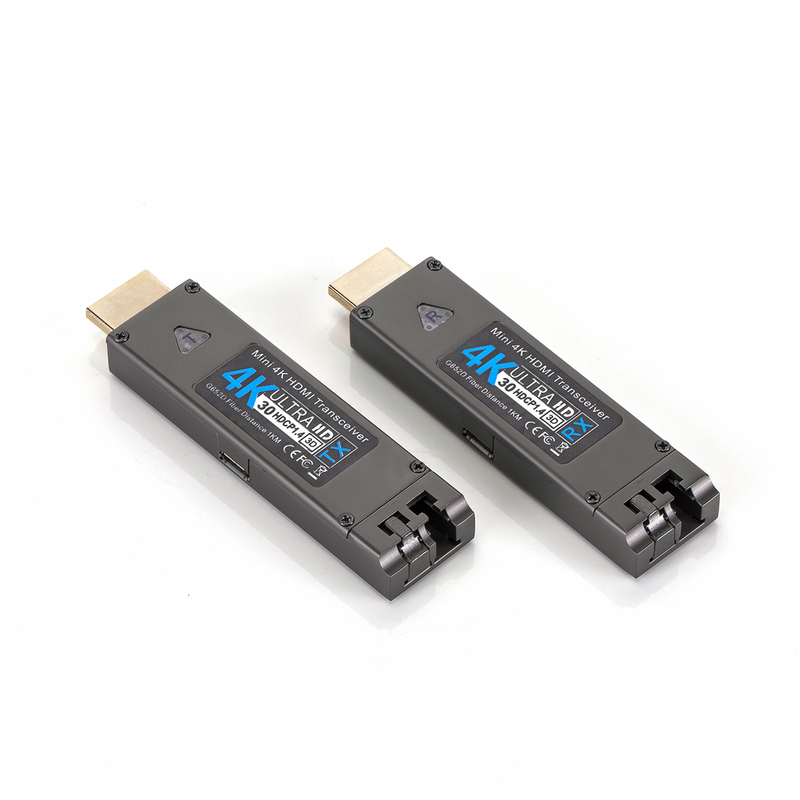

Mini 4K HDMI extender over fiber
WAT-MN-4KMI-1V
1.Support resolution 4096*2160@30Hz max and backward compatible.
2.Mini compact design.
3.Multi mode 1310nm up to 1km . single mode 1310nm/1550nm up to 2km. (both are optional)
4.Signal Delay < 2 ms
5.Plug and play, no setting required.
2.Mini compact design.
3.Multi mode 1310nm up to 1km . single mode 1310nm/1550nm up to 2km. (both are optional)
4.Signal Delay < 2 ms
5.Plug and play, no setting required.
Features
1.Maximum support 4096*2160@30Hz and downward compatible
2.Support standard HDM11.4 HDCP1.4
3.Support DDC CEC HPD signal
4.Support RGB&YCBCR4:4:4 YUV4:4:4 ,4:2:2 ,4:2:0
5.EDID transparent transmission
6.Multi mode transmission 1km, single mode transmission 2km ,can customize 20km
7.Delay < 2 ms
8.Support for hot plug
9.Fiber module 1310nm or 1310nm/1550nm wavelength
10.Use LC optical connector.
Technical Indexes
Packing list
Transmitter 1 pcs
Receiver 1 pcs
Micro-USB interface +5V adapter 2 pcs
User’s Manual
Please check carefully whether the above items are included , If any item(s) missing, please contact the manufacturer.
Indicator Status Description
Transmitter powered on ——- red light
Receiver powered on ——- red light
Transmitter video input ——- purple light
Fiber signal status —— purple light (if red light is on means no fiber signal)
Connection Diagram
Link Steps
Ordering Information
1.Maximum support 4096*2160@30Hz and downward compatible
2.Support standard HDM11.4 HDCP1.4
3.Support DDC CEC HPD signal
4.Support RGB&YCBCR4:4:4 YUV4:4:4 ,4:2:2 ,4:2:0
5.EDID transparent transmission
6.Multi mode transmission 1km, single mode transmission 2km ,can customize 20km
7.Delay < 2 ms
8.Support for hot plug
9.Fiber module 1310nm or 1310nm/1550nm wavelength
10.Use LC optical connector.
Technical Indexes
| Parameter | Specifications |
| Rate per channel | 10Gbps |
| Power consumption | 1420 mW TX Side 1220 mW RX Side |
| Power supply | 5V/+-5% |
| Maximum resolution | 4096*2160@30Hz |
| Refresh frequency | Up to 30 Hz |
| Color depth | Up to 48-bit |
| Wavelength | Multi mode 1310nm 1km , single mode 1310nm/1550nm 2km |
| Bit Error Rate Performance | 1.00E-12 |
| Laser output power | TX power >-5 db RX Sensitivity >-14 db |
| Dimensions | 79.2*20*10.3mm |
| Packing size | 210*150*60mm |
| Weight | 0.25kg/pair |
| Electrical Interface | 19 Pins HDMI Type Port 5 Pins USB Standard B |
| Operating temperature | Working Temperature: -20°C ~70°C Storage Temperature: -40°C ~85°C |
Packing list
Transmitter 1 pcs
Receiver 1 pcs
Micro-USB interface +5V adapter 2 pcs
User’s Manual
Please check carefully whether the above items are included , If any item(s) missing, please contact the manufacturer.
Indicator Status Description
Transmitter powered on ——- red light
Receiver powered on ——- red light
Transmitter video input ——- purple light
Fiber signal status —— purple light (if red light is on means no fiber signal)
Connection Diagram
Link Steps
- HDMI optical transmitter connect to HDMI video sources
- HDMI optical transmitter insert to LC fiber
- HDMI optical transmitter USB plug in to +5V power supply
- HDMI optical receiver connect to monitor
- HDMI optical receiver insert to LC connector and connect to HDMI optical transmitter
- HDMI optical receiver USB plug in to +5V power supply
Ordering Information
| Model Number | Fiber Mode |
Transmission Distance |
Fiber Connector |
|
| Transmitter | Receiver | |||
| PMD-MN-4KMI-1V-TL | PMD-MN-4KHDMI-1V-RL | Multi-Mode | 1km | LC |
| PMD-MN-4KMI-1V-TL | PMD-MN-4KHDMI-1V-RL | Single-Mode | 2km | LC |
Note:
|
||||
